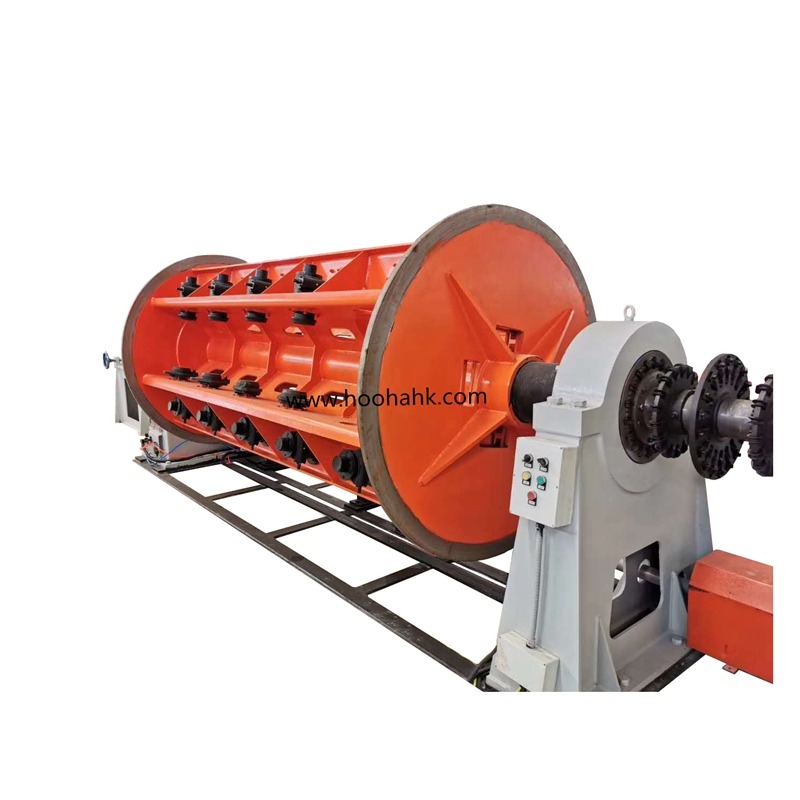

Durable Rigid Frame Stranding machine for ACSR AAAC Power Cable

1 Set
MOQ
$127,800.00(1 - 1 Sets) $127,600.00(2 - 4 Sets) $127,000.00(>=5 Sets)
Price
Durable Rigid Frame Stranding machine for ACSR AAAC Power Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HH-500/630
Usage: Stranding
Origin: Dongguan
Transport Package: Plastic Or Wooden
Packing: Negotiable
Technical Support: Overseas Support
Conductor Size: 1.5 Mm-5.0 Mm
Take-up Bobbin: 1250~2000mm
Speed: 70 M/Min
Control Systems: PLC
Voltage: 380V 50HZ
Color: Customer Requirement
Basic Infomation
Model Number: HH-500/630
Payment & Shipping Terms
Packaging Details: 1. film packing 2. wooden package 3.enclosed wooden package
Supply Ability: 1 Set/Sets per Week
Product Description
Company Profile
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Product Description
Application：
The aluminum machines is mainly used for non-back-twist stranding and compacting of round copper conductor and sector aluminum
conductor; and also can be used for non-back-twist stranding of large section,long length copper-cored aluminum wires and aluminum
alloy conductors.
Model Main Specification
500
630
Single Wire Diameter
1.2mm-5mm
1.2mm-5mm
Max After Stranding Diameter
50mm
50mm
RPM
65-143r/min
50-125r/min
Stranding Pitch
58-978mm
67-1272mm
Max Line speed
63.63m/min
63.63m/min
Pay Off Drum Size In Cage
PN500mm
PN630mm
Central Pay Off Drum Diameter
PN800-1600mm
PN800-1600mm
Take Up Drum Diameter
PN1000-2000mm
PN1000-2000mm

Main capability features：

1) The reels are arranged quartering around the stranding cages. The central shaft does not bear the reels.
2) High rigid, high performance, high speed and low inertia.
3) Driven by 36-stage variable gear-box, dual hauling and dual active device. Natural wire distribution avoids abrasion damage when stranding.
4) The most advanced emergency stop device, direct controlling every reel. As soon as any wire breaks, the entire machine will automatically stop at once.
5) Ensuring supplement after any wire breaking, especially suitable for power cables and high compacted cross linking cables producing.
6) Siemens PLC control system, operating on touch screen.
The HOOHA team is at the factory
The wire samples
It is suitable for the production of large-length bare aluminum, bare copper wire, steel core aluminum stranded wire and aluminum alloy wire, sector-shaped conductor stranding and pressing, round conductor stranding, drawing and pressing, and special-shaped conductor stranding.
The Technical Team

Chen Senior Engineer

Machine design for 30 years

Hu Machine Designer

20 years engineering design experience

Bi Head Engineer

Responsible for project engineering

Why choose us?

1. We are the cable equipment manufacturer.
2. Professional engineer, long-term to research and development for to cable equipment .
3. High frequency capacity manufacturer machine is provide. Guarantee the machine all weather running .
4. Our machine use the international qualified brand, like Siemens, Omron, NSK, Lg, etc.
5. Technical support and spare parts service.
6. Well-experienced in overseas to support customer with technical,training,operating.
7. Responsible and Good communication and customer service skills,and save time and human cost for customers.
8. Complete Foreign Trade Team.
9. Working efficiently,quickly response to customer needs.
Professional Engineers and Experienced Sales Team
Name
Education
Position
Mainly responsible for project
Specializing in project
Working history ( year )
Zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15
Xiaohua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10
Changhong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25
Xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15
Lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16
Zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15
Jinxin Liu
college
Marketing engineer
After service
electrical engineer
7
Xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10
Changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10
Haipin Li
University
Engineering director
Marketing and sales
project consulting
8
Sen Yang
University
Engineering translator
Marketing and sales
project consulting
5
Our professional sales and engineering team
Customer Cases
HOOHA provides technical support to overseas customer service
Dubai
Algeria
Syria
Egypt
Pre-sale
1.Professional engineer team provide customized design and machine arrangement drawing service. 2.Professional engineer team can
visit customers's company in person and provide face-to-face service.
3.Professional trading system provide high-efficient communication.
4.Professional sales team including pre-sale staffs,after-sale staffs,order supervisor,shipping managers, finance
managers,cable. making engineers would give you more detailed consultant service.
Mid-sale
1.Professional follow-up system ensures high-quality service including live production video shooting,etc. 2.Quality control system with professional engineers ensures project goes smoothly.
3.Quality checking will be provided with professional quality inspection report before machine delivery.
After-sale
1.Overseas on-site installation guidance and technical support including previous testing, operation instruction and talent training.
2.Free online consultance service. 3.Long-time maintenance, reconstruction and upgrade services of the overall equipment.
4.Extend service support, such as raw material or accessory suggestions etc.
Exhibitions ＆ Certifications
2018 Bombay, India Fair
Our company took part in Bombay Exhibition in 2018
Russia Exhibition
The communication of Russia exhibition
2019 Thailand Exhibition
A successful interchange at the Exhibition in Thailand
2020 International Cable & Wire Fair
The Shanghai exhibition is gain a lot
Our Certificate
Packing & Delivery
Streatchable PE film wrapped, wooden frame packed, loaded into container for shipping. Special packaging way as per discussed.
Carton package
wooden package
Wrap in plastic film to prevent wetting
Container transportation
1. film packing 2. wooden package 3.enclosed wooden package
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%),
There are 5-10 professional workers in HOOHA.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

6: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel :https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
