Why choose us?
1.34 years experience on cable/wire manufacture equipment
2.Industrial chain advantage:Located in Hebei province in Huabei area,one of the most important heavy industry belt of China,HongQi`s production get:
--better quality
--less cost
3.As both manufacture and trader,we can control:
--the Price
--the Quality
--the Delivery time
4.Flexible shipment choice:TIANJIN seaport or SHANGHAI seaport
5.Consummate technical guidance from pre-sale to after-sale
Main Parameter
| Model Number | 500 | 630 | |
Dia. Of Single Wire(mm) | Copper | 1.5-5.0 | |
Aluminum | 1.8-5.0 | ||
Max.Section Square(mm2) | Cu | 500 | |
Al | 630 | ||
Max Linear Speed(m/min) | 7.32-55.29 | 7.62-57.93 | |
Pay-off In Cage | PND500 | ||
Stranding Pitch(mm) | 45-1105 | 56-1259 | |
Take-up Bobbins(mm) | PN1600-PN2500 | ||
Capstan(mm) | 2000mm | ||
Structure diagram
Features
1.All Cages, Pre-Spiraling Heads, Taping Head, Capstan & Takeup are separately driven.
2.All bobbins can be loaded/unloaded simultaneously by automatic loading equipment, thereby reducing loading/unloading time to Max. 30 minutes.
3.Lay is fed in MMI (Operator touch screen) instead of Gearbox. Any lay value in the range can be set & achieved that ensure easy operation.
4.In Power failure situation, the machine comes to a controlled stop by emergency braking system, enabling the bobbin is held by spring pressure with a secondary positive lock. The release of bobbin is by externally plugged pneumatic compressed Air.
5.Constant Bobbin back tension achieved by Electronic pneumatic valve & Single bobbin rotation is electronically sensed for maintaining consistent tension by positive motor control system or passive mechanical equipment.
6.Multiple bobbin size available(500,630,710,etc)
7.Mutiple host with mutiple cage number((6.12.18.24.30)) optional

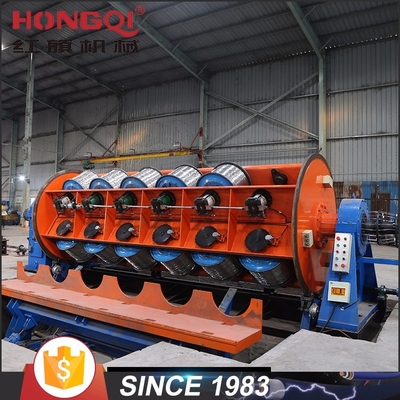

Product Photos
Automatic Loading Equipment
Application
The aluminum machines is mainly used for non-back-twist stranding and compacting of round copper conductor and sector aluminum conductor; and also can be used for non-back-twist stranding of large section,long length copper-cored aluminum wires and aluminum alloy conductors.
Central pay-off, host frame, die holder, impacting device, traction device, take-up and traversing device, etc.
portable wire/cable take up machine
A .About XINGHAN
(1) For new partner,Every salesman of us can tell you what the first step on the equipment ,workshop how to plan,how to save the costs and so on.
(2)Our main products are: cable machine series , corrugated chain armor installed series, box cutter series , fork cutter machine, cage stranding machine, pipe cutter machine, plastic extrusion machine, rubber extruder series and continuous curing unit and so on. Thereinto,JLK12 +18 +21 / 500 box cutter and CL2 +3 / 1600 cable machine has hit a domestic brand , renowned at home.
B.Installation and repair
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
(2)Workers are required to assist the installation for big project.
(3)USD 70/day for one person as installation fee.
C. Warranty:
1) 12 months warranty after delivery.
2)Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
3)Over 10 engineers available to service machinery overseas.
4)Free spare parts replacement within warranty period.
5)Beyond guarantee period, we will charge market price for spare parts.
