Why choose us?
1.34 years experience on cable/wire manufacture equipment
2.Industrial chain advantage:Located in Hebei province in Huabei area,one of the most important heavy industry belt of China,HongQi`s production get:
--better quality
--less cost
3.As both manufacture and trader,we can control:
--the Price
--the Quality
--the Delivery time
4.Flexible shipment choice:TIANJIN seaport or SHANGHAI seaport
5.Consummate technical guidance from pre-sale to after-sale
Main Parameter
| Model | 400 | 500 | 630 | |
Dia. of inlet wire (mm) | Copper, aluminum | 1.5-3.5 | 1.8-4.0 | 2.0-5.0 |
| Steel | 1.0-2.5 | 1.5-3.0 | 1.8-4. | |
| Stranded wire | 1.2-3.5 | 1.5-5.0 | ||
| Rotation speed of host (r/min) | Full loaded | 600 | 500 | 500 |
| Un-loaded | 750 | 750 | 750 | |
| Stranding pitch (mm) | 26-238 | 49-450 | ||
| Linear speed (m/min) | 15-143 | 24-225 | 17-157 | |
| Dia. of capstan (mm) | 800 | 1000 | 1250 | |
| Take-up bobbin | PN1250 | PN1600 | PN1800 | |
Features
1.High rigid, high speed and low inertia.
2.Back twist design insure that no abrasion damage while stranding.
3.Most advanced emergency stop device.
4.Oil pump for structure lubrication.
5.Various PLC electrics optional.
6.Outlet angle is less than 20°that protecting wire from friction harm
Product Details
Product Application

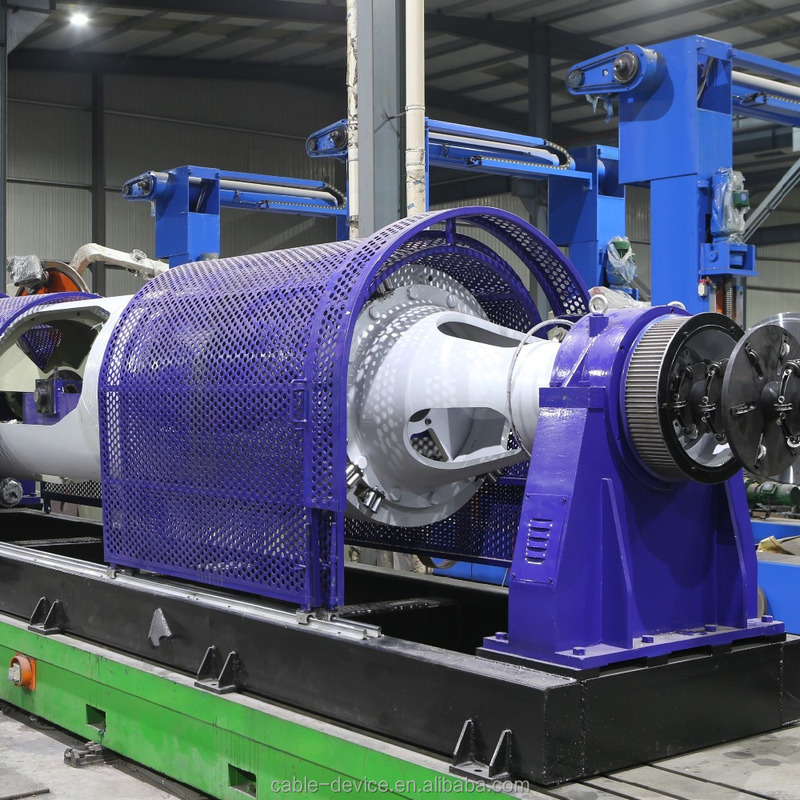

This high speed electric wire cable making machine is used for stranding copper wire, aluminum wire, steel wire, aluminum stranded steel core wire, and steel wire rope. Accompanied with taping machine , it also can twist insulated core and part of control cable.
The electric wire cable making machine is composited of Central pay-off, tubular host, taping machine (optional), traction device, take-up and traversing stand, and electrical control system.
A .About XINGHAN
(1) For new partner,Every salesman of us can tell you what the first step on the equipment ,workshop how to plan,how to save the costs and so on.
(2)Our main products are: cable machine series , corrugated chain armor installed series, box cutter series , fork cutter machine, cage stranding machine, pipe cutter machine, plastic extrusion machine, rubber extruder series and continuous curing unit and so on. Thereinto,JLK12 +18 +21 / 500 box cutter and CL2 +3 / 1600 cable machine has hit a domestic brand , renowned at home.
B.Installation and repair
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
(2)Workers are required to assist the installation for big project.
(3)USD 70/day for one person as installation fee.
C. Warranty:
1) 12 months warranty after delivery.
2)Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
3)Over 10 engineers available to service machinery overseas.
4)Free spare parts replacement within warranty period.
5)Beyond guarantee period, we will charge market price for spare parts.
