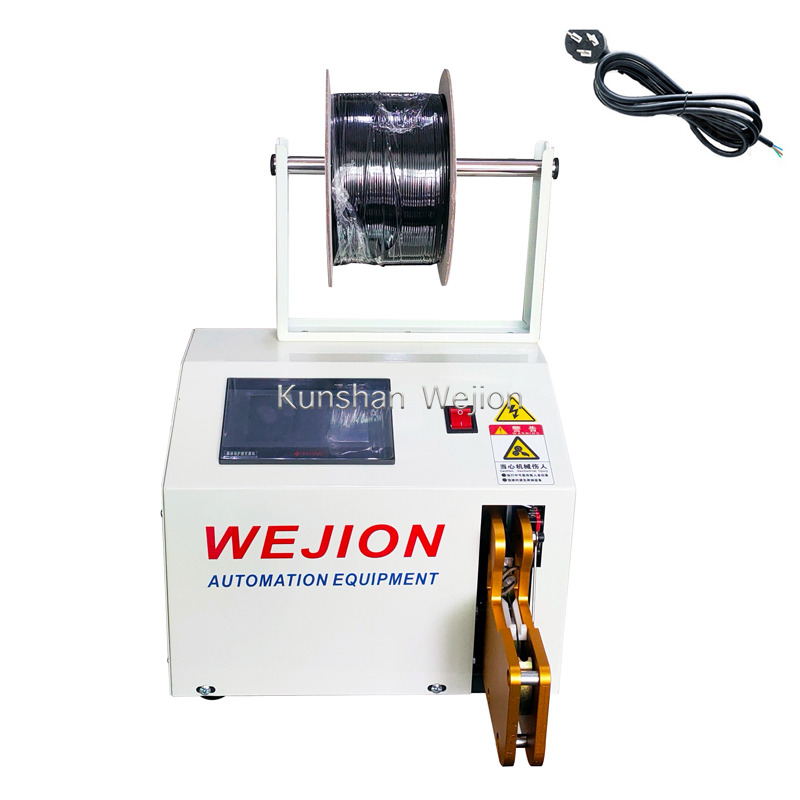

Name: WJ3191 Semi-Automatic Binding Coiling Wire Tying Machine
Brand: WJ3191 Semi-Automatic Binding Coiling Wire Tying Machine
SKU: BH-30, BH-30
Price: 1 USD
Availability: InStock
Rating: 4.8 (174 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: BH-30

Usage: WINDING

Name: Wire Binding Machine

Model: BH-30

Power / Voltage: AC220V

Frequency: 50HZ/60HZ

Winding Size: Can Be Adjust(50-150MM)

Wingding Speed: Can Be Adjust(1-30 Stall

Winding Range: 120-200mm

Diameter Range: 05-40mm

Winding Laps: Can Be Adjust(Suggest 2-6 Circle)

Winding Speed: Can Be Adjust(1-30 Stall(Suggestion 2)

Basic Infomation

Model Number: BH-30, BH-30

Payment & Shipping Terms

Packaging Details: WOODEN CASE STANDARD PACKAGE

Supply Ability: 5000 Set/Sets per Month

Product Description

BH-30 Wire Binding Machine

Parameters

Model	BH-30	BH-35	BH-40
Voltage	AC220V			AC220V	AC220V
Frequency	50HZ/60HZ			50HZ/60HZ	50HZ/60HZ
Power	80W			80W	80W
Winding size	Can be adjust(50-150MM)			Can be adjust(50-150MM)	Can be adjust(50-150MM)
Wingding speed	Can be adjust(1-30 Stall)			Can be adjust(1-30 Stall)	Can be adjust(1-30 Stall)
Winding Laps	Can be adjust(1-999 circles)			Can be adjust(1-999 circles)	Can be adjust(1-999 circles)
Tie length	60-150mm	120-200mm	130-260mm
Harness diameter	Φ05-35mm	Φ20-45mm	Φ25-65mm
Weight	30Kg	35Kg	45Kg
Dimensions	450500320mm	450500320mm	450500320mm

BH-30 Features：

Semi-automatic wire winding and tying machine this machine, the size of the wire general compatibility is relatively strong, small to USB cable large to power cord, especially suitable for more kinds of wire manufacturers.The speed can reach 2100 bars/small inch, which is 5 to 6 times of manual work.It takes up no room.The worktable is designed to make it convenient for workers to sit and work, which greatly reduces the fatigue strength of employees and improves work efficiency.The machine is controlled by programmable logic controller (PLC) and controlled by human - machine interface.The cruise mode can be set, and the continuous
operation can be achieved only by pressing the switch once, so as to get rid of the disadvantage of pressing the underswitch every time.Convenient maintenance and adjustment, accurate alarm and display fault points in case of equipment failure.

1. The automatic cable tie machine uses wire ties to tie the power cords, USB cables and other wiring harnesses, 2. The wire tie can be automatically cut and tightened. The cut length and the number of twisted turns of the tie can be set by the program. 3. The user only needs to place the wire harness to the working position, and the wire tie can be automatically wound around the product and tightened.

Hot Sell Products

A.Nylon wire tie machine

WJ-NL001

Handheld nylon wire tie machine

WJ-NL002

Desktop nylon wire tie machine

WJ-NL003

Motor stator nylon wire tie machine

WJ-FX01

Cable prefeeder

WJ-8030HJ

Wire stripping machine +Rewinding device

WJ-B70

70mm² automatic wire cutting gstripping machine

samples：

Packing

Company Introduction

Kunshan Weijiang Automation Equipment Co., Ltd is a modern technology enterprise specializing in the research,development, production and sales of intelligent equipment for processing, cutting and wiring harnesses. The company's core products include: large square computer stripping machine, automatic terminal machine,corrugated pipe cutting machine, rotary pneumatic stripping machine, hexagonal crimping machine, and so on. Fully automatic heat shrinkable sleeve terminal machine, automatic sheath terminal machine, automatic waterproof bolt terminal machine, automatic rubber shell terminal machine, automatic cable terminal machine, new energy automation equipment, etc. In addition, the company undertakes R&D and manufacturing of non-standard automation equipment.

Our Services & Strength

We are one of the most professional Chinese wire cable process machine manufacturers and leaders.

* Best products and factory price.

* On-time delivery and the shortest delivery time.
* 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to
pay for the delivery.
* OEM and customized service.

* User manuals will go with relative machines.

QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.

FAQ

1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.

2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery

3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples

4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication

5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
