Hotels Plastic Rope Rope Making Machine /rope Making Machine

1 Set
MOQ
$6,000.00(1 - 9 Sets) $4,000.00(>=10 Sets)
Price
Hotels Plastic Rope Rope Making Machine /rope Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Processing Type: Other, Other
Product Type: Plastic Rope
Video Outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Bearing, Gearbox, Motor, Gear
Voltage: 220V/380V, 220V/380V
Dimension(L*W*H): 9*2.2*2.3
Weight: 3000KGS, 2500kgs
Warranty: 1 Year, 1 Year
Key Selling Points: Easy To Operate
Power (kW): 4
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Free Spare Parts, Online Support
Plastic Type: Plastic Rope
Material: PP PE COTTON
Color: Blue Green Yellow
Power: 4kw
Certification: BV, BV
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Basic Infomation
Certification: BV, BV
Payment & Shipping Terms
Packaging Details: nude packing
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description

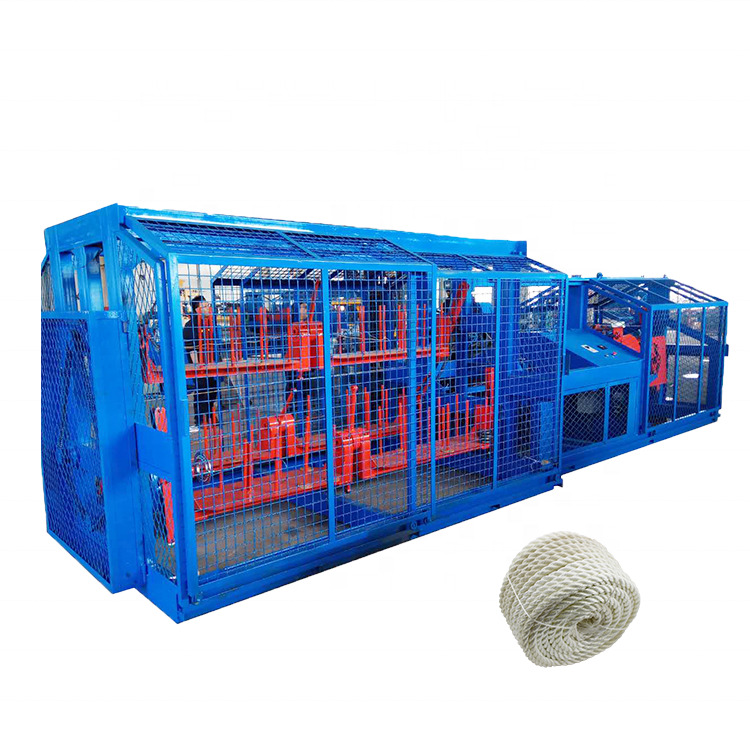

This machine is suitable for making ropes with Nylon, PE, PP, etc. It consists of rope making device and strand making device and can produce rope with Dia.3-30mm after continuous operation once and omit extra working steps from strand making to rope making, thereby the production efficiency is greatly improved. There is no waste yarn or scrap coming out during the production process, so the ropes are more attractive and durable.


Detailed Images
Technical data
Revolution of principal axis
(r/min)
Dia of
rope(mm)
Automatic
Lining
machine
Twist

(t/m)
Motor power
 Dimension
(m)
Output
(t/day)
M77
320
20--26
GP40
16-62
18KW-4
12*2.3*2.1
1.5-2
M66
350
16--22
GP40
16-62
15KW-4
9*2.1*2.1
0.9-1.5
M55
420
10--16
GP30
16-62
7.5KW-4
6.86*2*2.1
0.8-1.1
M44
620
5--8
16-62
5.5KW-4
5*1.9*1.8
0.3-0.6
M33
900
3--6
26-82
3KW-4
4*1.9*1.8
0.2-0.4

Machine usage
Raw material: PP(polypropylene), HDPE( polyethylene) ,PE, PET , nylon. cotton, 100% new or recycled mixed material
Rope size:3mm-30mm. 3 strand, 4 strand.
For production of finished coiled rope from natural and synthetic fiber yarns
Three-strand and four-strand models
From start to finish in one continuous operation




Performance&advantages
·High productivity
·Save labor ·Sprocket drive
·With digital length counter meter
·Auto stop after yarn breakage to control wastage
·Door sensor, protective door with steel wire mesh
·Low noise level, Low maintenance, Easy operation system
About us
Laizhou Lutong Plastics Co.,Ltd. is a comprehensive manufacturing company that integrates plastic machinery manufacturing, rope and wire. The main productics are plastic drawing machine, film blowing machine, tear film machine, ball machine, cylindrical molding machine,rope making machine, plastic recycling equipment.
The company is located in the development zone of Laizhou City, covering an area of 20,000 square meters. It consists of a plastic handing factory, a rope factory, a tear film ball factory and an international business department. More than 100 sets of special equipment for twisting, rope making and thread making.
