HBFL Straightening And Cutting Wire Machine,Rotating die wire drawing machine
A. BASIC TECHNICAL PARAMETER AND ONE SET INCLUDING
|
Item No. |
Product name |
Quantity |
FOB Tianjin Unite Price |
Total Price |
|
1 |
Vertical pay off stand |
1 |
Free |
Free |
|
2 |
Husking machine
|
1 |
Free |
Free |
|
3 |
Main machine of Straight line wire drawing machine includes dust removal+control cabinet |
11 |
USD6800 |
USD74800 |
|
4 |
H type wire collection or elephant nose wire collection |
1 |
USD5700 |
USD5700 |
|
5 |
Pointer machine |
1 |
Free |
Free |
|
6 |
Butter welding machine |
3 |
Free |
Free |
|
7 |
Wire drawing Powder |
200kg |
Free |
Free |
|
Mold type |
HBFL-8/550 straight line wire drawing machine |
|
Drum diameter (traction diameter) |
550mm |
|
Quantity of drum |
11 |
|
Input wire diameter |
Φ6.5mm |
|
Output wire diameter |
Φ1.25mm |
|
Inelt wire tensile strength |
≤450mpa |
|
Maximum compressibility |
90.5% |
|
Max speed |
12m/s(Φ2.0mm ,1200Kg/H) |
|
Motor |
22KW*11+ wire collection 15KW=257KW |
|
The motor is decorated |
Motor erection |
|
Mold size |
Φ40mm×30(tungsten steel) |
|
Drum (tower wheel) arrangement |
The nose is upright and inclined |
|
machine direction |
From right to left |
|
Wire collection type |
H type wire collection or elephant nose type |
|
The finished straightening |
finished straightening |
|
wear-resisting part |
Rotating part in contact with wire The surface is sprayed with tungsten carbide |
|
Roll cooling |
Spray water cooling |
|
Die box cooling form |
The first end adds the rotation to pull the pink bar, directly draws the water cooling in the second area |
|
cooling liquid
|
User supplied liquid, external circulation |
|
Tension frame |
Built-in inflation detection |
|
Rack |
20 steel plate, square pipe welding machine, the body to the minimum |
|
Drive |
Transmitte belt |
|
Bearing support form |
The box is closed |
|
Safety device |
Safety cover, add the observation window, open the cover and automatically slow down, stop the wire for detection |
|
Bearing lubrication |
Tank self-lubrication |
|
Vacuuming design |
Reserve suction holes |
|
lighting |
Each machine is equipped with individual lighting |
|
Parking brake |
Pneumatic brake |
|
Electric cabinet |
Vito structure, protection grade IP54 |
|
Electrical system |
Frequency conversion speed control 485 communication PLC Control |
|
Energy consumption monitoring |
Electricity meters are installed |
|
Frequency conversion motor brand |
Hebei mengniu motor(China famous brand) |
|
Low voltage electrical appliances |
Delixi brand |
|
The inverter |
22 kw huichuan inverter, 485 communication, |
|
Field cable supply |
The special control cable shall be provided by the supplier Other control cables and power cables shall be provided by the demander
|
|
Gas, water, electricity |
The demander receives the device interface |

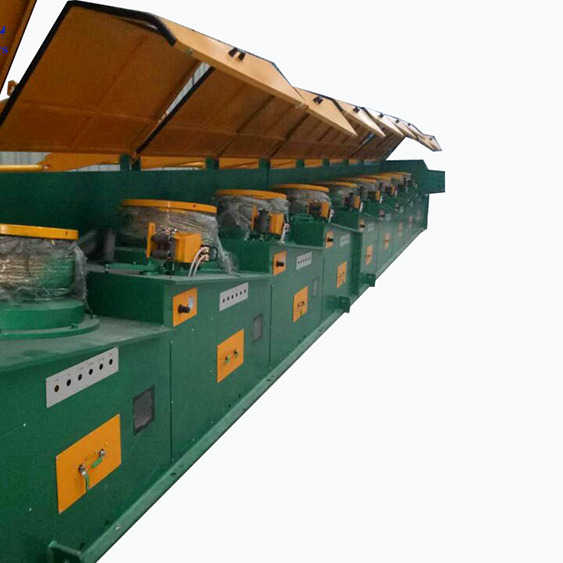

B. PICTURES OF THE PRODUCTION LINE
