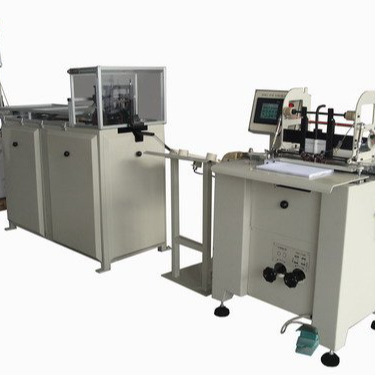

Name: DFA 31/21 Double Loop Wire Double Comb Wire Twin Ring Wire Forming Machine For Calendar Notebook 2400*650*1700 mm
Brand: DFA 31/21 Double Loop Wire Double Comb Wire Twin Ring Wire Forming Machine For Calendar Notebook 2400*650*1700 mm
SKU: DFA31/21
Price: 8 USD
Availability: InStock
Rating: 4.8 (139 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: DFA31/21

Double Wire Forming: Automatic

Speed: 350-550 Loops/min

Power Of Forming Machine: 0.75kw

Power Of Spooling Machine: 0.37kw

Power Of Paper Cutting Machine: 0.25kw

Power: 3PH 380V 50/60HZ

Size Of Forming Machine: 2400*650*1700 Mm

Size Of Spooling Machine: 1300*1000*1200 Mm

Size Of Paper Cutting Machine: 600*500*1400 Mm

Wire: Nylon Coated Wire

Basic Infomation

Model Number: DFA31/21

Payment & Shipping Terms

Packaging Details: wood cases

Supply Ability: 10 Set/Sets per Month

Product Description

Double Wire Forming Machine DFA-21 / DFA-31

This machine is applied to the mass production of double loops wire (twin-ring), which is widely used in notebooks, workbooks,calendars, etc.

Technical data:
Speed: 350(Pitch 2:1)Loops/min
500(Pitch 3:1) Loops/min
Power: 3PH 380V 50/60HZ (other voltage on request)
Machine Dimensions (L×W×H):
Forming Machine: 2.4×0.65×1.7m
Coiling machine: 1.3×1.0×1.2m
Paper cutting machine: 0.6×0.5×1.4m
Weight: 500Kg

Double Wire Binding Machine DCA-520

The machine is used for binding double wire books, notebooks, calendars, etc. With the integration of automatic cutting,loops-counting, skip binding, and closing, it increases the production efficiency and lowered the cost remarkably.

It's easy to change mold and optional hanger attachment.

Technical data:
Work Speed: up to 1000 Volume/hour( depends on operator's ability)
Binding Capacity: 1/4" - 3/4"
Max. Binding Length: 520 mm
Air Pressure: 5-8 Bar
Workbench Dimension: 680×310 mm
Power: 1PH 220V 50/60HZ (other voltage on request)
Machine Dimensions (L×W×H):
Main machine dimensions: 0.8×0.75×1.15 m
Feeding reel dimensions: 0.6×0.5×1.35 m
Weight: 350 Kg

Double Wire Binding Machine DCB-360

The machine is used for binding double wire books, notebooks, calendars, etc. It can bind 1/4"-3/4" without changing the mold.With the integration of unwinding the spool, loops cutting, conveying, and closing, it increased the production efficiency and lowered the cost remarkably.

Technical data:
Work Speed: up to 1000 Volume/hour(speed depends on operator's ability)
Air Pressure: 5-8 Bar
Binding Capacity: 1/4" - 3/4"(No need to change binding mold)
Max. Binding Length: 360mm(14.2")
Power: 1PH 220V 50/60HZ (other voltage on request)
Machine Dimensions (L×W×H):
Main Machine: 1.95×1.27×1.25m
Feeding Reel: 0.8×0.45×1.06m
Conveyor: 2.16×0.37×0.7m
Weight: 300Kg
